PRODUCT
FP8153T



15" Atom E3845, w/6S, VGA, 2Giga-LAN, 4USB, Audio, CFast/mCard Socke and Touch Screen

Function Description

Description:

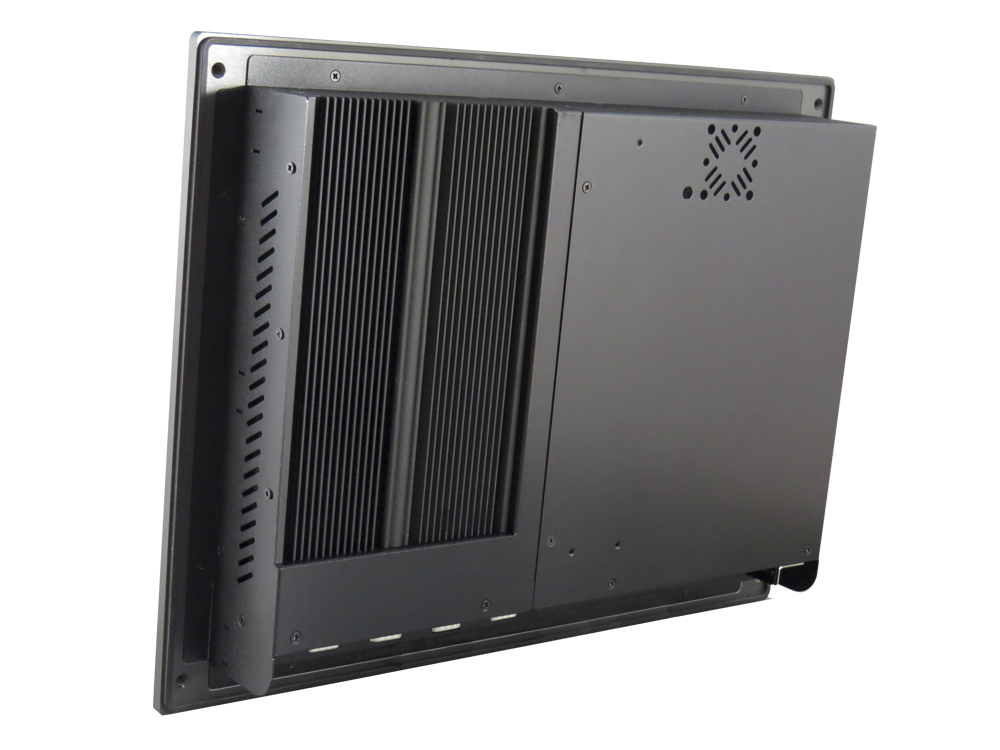

15" Panel PC with Touch Screen
Special Features:
Low Power & Supporting PCI-e Mini-Card for wireless modules
Applications:
Vehicle Computer、Interactive KIOSK、P.O.S、Home Automation、Digital Signage、Medical Terminal
Optional Accessories:
FP8152K1 VESA Mounting Kit
FP8152K2  Board Mounting Kit
FB4757   1 PCI Slot Riser Card
AK-1006-Half size PCIe Mini Card Adapter Kit

Product Specifications
Function Items Specifications
 LCD Panel
       Monitor Type 15" TFT LED LCD
       Touch Screen Yes
       Resolution 1024 x 768
       Pitch 0.297(H) x 0.297(V)
       Viewing Angle (H/V) 80°/60°
       Response Time 5.7/2.3 msec
       Contrast Ratio 700:1
       Brightness 400 cd/㎡
       Color Support Native 16.2M (RGB 8-Bit Driver)
 CPU Board
       Processor Atom E3845 1.91GHz
       DRAM 4GB DDR3L
       DRAM Socket 204-Pin SoDIMM *2 (DDR3L, 8GB Max)
 I/O Connector
       KB/Mouse -
       Serial RS232 *4、RS232/422/485 *2
       Parallel -
       USB 4 (2.0) + 1(3.0)
       LAN 2 (Giga LAN)
       Display VGA、HD
       Dual Display Yes
       Audio Yes
       GPIO 4in,4out
       BUS I/F Mini-Card Socket *1 + PCIe slot (by 1)
 Storage Bay
       CFast Socket Yes
       SD Socket 2.5" *1 (SATA)
 Power Reguired
       Input Voltage DC 12~24V
      Rated Current 42VA Max
 Operation System Windows  7 / 8.0 / 8.1, and Linux
 Operation Temperature 0°C to 60°C (32℉ to 140℉)
 Compliances CE / FCC / IP65 / RoHS
 Dimension (W x D x H) 400 x 65 x 307 mm
Support
Title File
 Quick Manual Q8153T
 Datasheet D8153T
 Certificate ♦CE    ♦FCC
