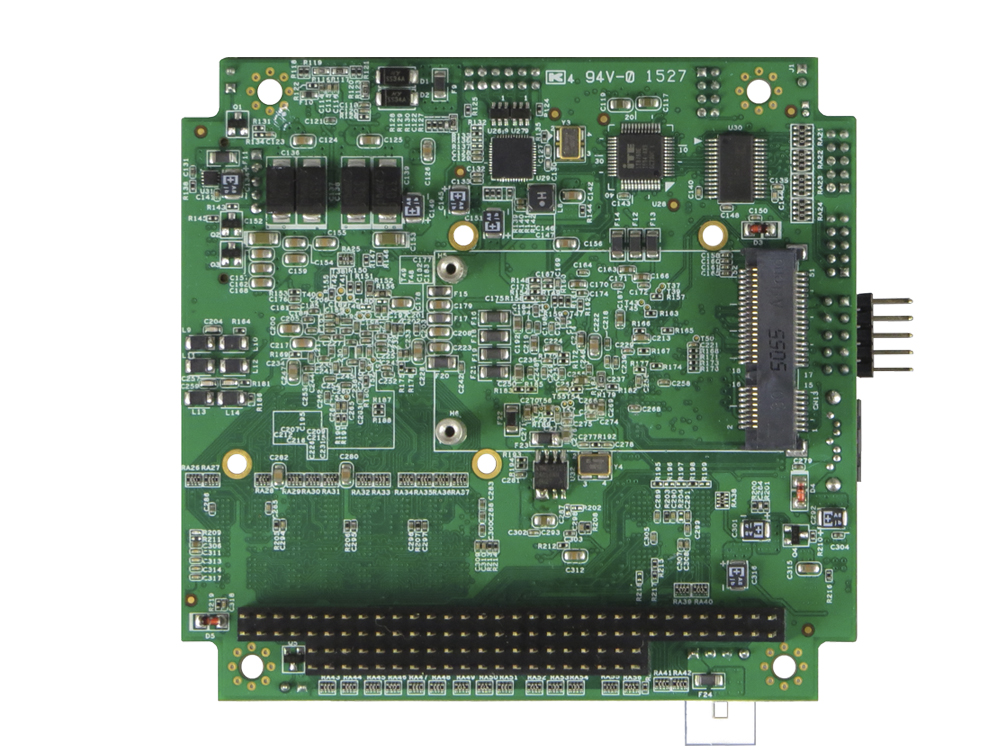

FB2710



AMD G-Serial T16R, w/2S, VGA,Giga-LAN, 2USB,  Audio /Cfast

Function Description

Description:
PC/104 Fanless CPU Board
Special Features:
Fanless, Low Power

Applications:
Factory e-automation、Home Automation、Digital Signage、Gaming

Product Specifications
Function Items Specifications
 Processor AMD G-Serial T16R
 Operating Freq. (Hz) 1GHz Max
 Chipset AMD Fusion controller hub A55E
 BUS I/F PC/104
 L2 Cache 512KB Per core
 On-Board DRAM -
 DRAM Socket 204-Pin SoDIMM *1 (DDR3L, 4GB Max)
 VGA Chipset AMD T40E(AMD Radeon HD 6250)
 VRAM UMA 384MB Max
 Display VGA、LVDS
 Dual Display Yes
 Audio Yes (Option)
 Serial Port RS232 *1、RS232/422/485 *1
 Parallel Port -
 SATA  SATA*1
 KB / Mouse Yes
 LAN 1 (Giga LAN)
 USB 2 (2.0)
 GPIO -
 WDT / HWM Yes / No
 Flash/Memory Socket CFast Socket *1
 BIOS AMI
 Power Required +5V Only, 20VA Max
 Operation System Windows XPe /  7 / 8 / 8.1 / 10 and Linux
 Operation Temperature 0°C to 60°C  (32℉ to 140℉)
 Compliances RoHS
 Dimension 102 x 96 mm
