FX5206



Vortex86DX2 Small System with VGA, 1S, 1Giga-LAN, 3USB and CFast/SD/mCard Socket

Function Description

Description:
Fanless Embedded System
Special Features:

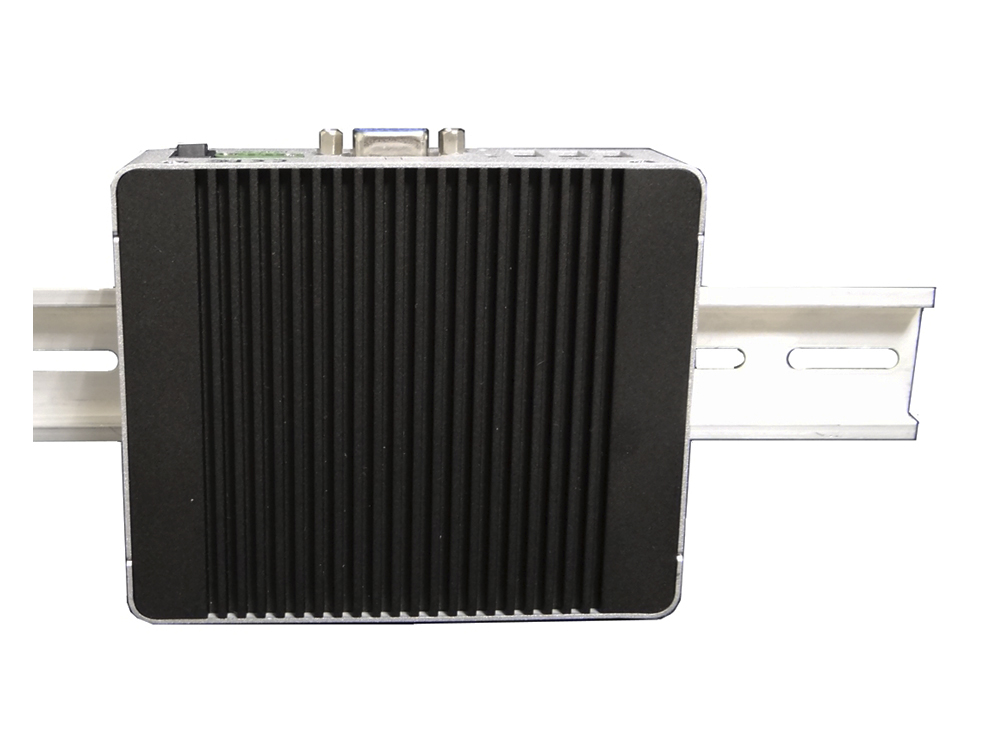

Fanless, Low Power, DinRail Mount & Supporting Mini-Card for wireless modules
Applications:
Thin Client、Home Automation、Transportation
Optional Accessories:
FX5311K1 - VESA Mount (75 x75 mm Only)
AK-1006-Half size PCIe Mini Card Adapter Kit
AK-1009-DinRail Mount Kit
FX5407K3 - LCD VESA Mount Kit

Product Specifications
Function Items Specifications
 CPU Board Vortex86DX2
       Processor DMP Vortex86DX2
       DRAM 1GB DDR2 (On-Board )
       DRAM Socket -
 I/O Connector
       KB/Mouse Yes
       Serial RS232/422/485 *1
       Parallel -
       USB 3 (2.0)
       LAN 1 (Giga LAN)
       Display VGA
       Dual Display -
       Audio Yes
       GPIO -
       BUS I/F PCIe Mini-Card Slot *1
 Storage Bay
       CF / CFast Socket CFast
       HDD Space -
 Power Reguired
       Input Voltage DC 12~24V
      Rated Current 25VA Max
 Operation System Windows  XPe / CE, and Linux
 Operation Temperature 0°C to 50°C (32℉ to 122℉)
 Compliances CE /  FCC / RoHS
 Dimension (W x D x H) 115 x 95 x 30.2 mm
Support
Title File
 Quick Manual Q5206
 Datasheet D5206
